Buy Freud 94-100 5-Piece Cabinet Door Router Bit Set with 99-510 Panel BitFreud 94-100 5-Piece Cabinet Door Router Bit Set with 99-510 Panel Bit Product Description:
- Create cabinet doors
- For table-mounted router
- Includes 99-510 panel bit
- Includes wood case
- Wood case
Product Description
Produce your own cabinet doors with this router bit set, and at a fraction of the cost of shaper heads. Each bit is individually balanced and designed to be used with a 1/2-inch table-mounted router. The wooden storage case is provided to keep your bits safe and clean. The set comes with a 99-510 panel bit.
Customer Reviews
Most helpful customer reviews
73 of 73 people found the following review helpful.
A Fine Router Bit Set--Here is Some Info to Help You
By Adrian
This is fine set--strong, well-made, sharp, and packaged in a handsome wood storage box. Well worth the price. Only negative for me is the reveal on the panel raising bit wasn't quite the size I would have liked.
Here are some points that may prove helpful to you.

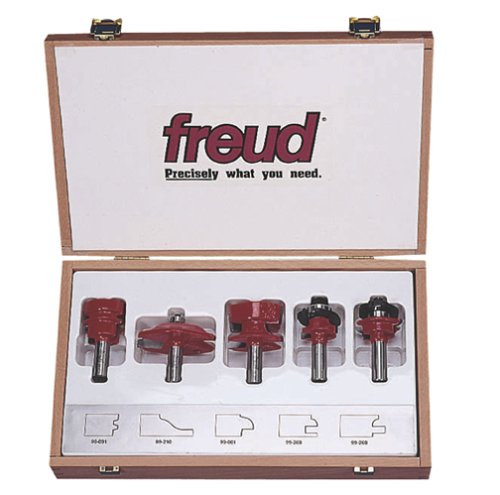

A. The description doesn't identify the five bits. They are from left to right in the picture 1) a bit for mating edges of boards for glue-ups 2) the panel raising bit, 3) a door lip bit--for making center panel lips that overhand rails and stiles, 4 and 5) a matched pair for cutting rails and stiles. If you are doing raised panels 2), 4) and 5) are the bits that count.
B. The set comes with a helpful how-to booklet. It is first rate. But, alongside the picture of the five bits on page 6 is a caption that misidentifies the five. The order is wrong. Left to right the bits shown are actually panel raiser, rail cutter, stile cutter, glue joint and door lip.
C. The panel raising bit will produce a relief of 3/4" (excluding the 3/8" that recesses into the rail and stile grooves). That's less than the more common 1-1 1/2" reveals on many kitchen cabinet doors. It turned out to be very acceptable for my rather small doors (20"x20"), but it may or may not be what you need or want.
D. You absolutely need to use a router/shaper table. The panel raising bit has a 2 1/2" diameter, so you need no less than a 3" throat opening.
E. The bits all worked fine on my 2 HP variable speed router--using red oak stock. (Variable speed helps a lot and is probably a must.)
F. You will want to make practice cuts on scrap, back up end cuts with waste stock to minimize tear-out, use a safety guard on the router/shaper table--along with safety glasses and use hold-downs to secure work pieces as they pass through the bit.
The raised panel doors were fun to make and they look splendid. Good luck with yours!
10 of 10 people found the following review helpful.
One more thing....
By Bob Feeser
The large review written here, really covered all of the bases. The one more thing worth mentioning, is that Freud sells the larger more popluar 1 1/2" reveal in a set, which has the 3 1/2" bit to make it, plus the stile and rail set. They come in different part numbers starting with 97- So two of them for example are 97-100, and 97-104. Be sure your router base is at least 3 5/8" to accept them. It does not include the glue up joint bit, or the drawer lock bit. The glue up joint bit is great for mating a number of panels. Avoids the lip of one or more boards sitting a little proud, that is frequently a problem. It is not a problem, if you have a very large sanding station, belt or drum, you can send a complete door through and get all of the surfaces even. For the rest of us, a glue up bit is just what the doctor ordered. What happens is that you run the bit in adjoining pieces. One piece is run face up, then next is run face down. Then the two mate together perfectly, as long as you have the registration set proplerly. When the boards are clamped-compressed together, they line up. The other thing is the drawer lock bit, which gives you the drawer front, by (rabbetting) the back of the drawer front, including and edge lip which is beneficial to ensure a clean close. Freud bits are superior in the job they do. They leave a clean finish on the work, and saves a lot of time not having to sand out imperfections. All in all this is a very nice set. Highly recommended.
